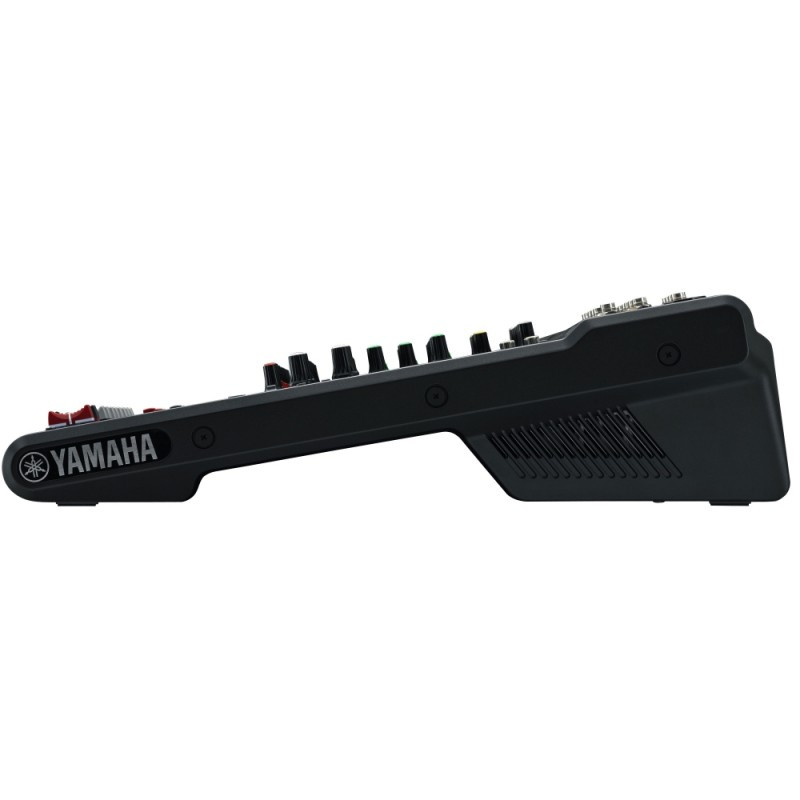

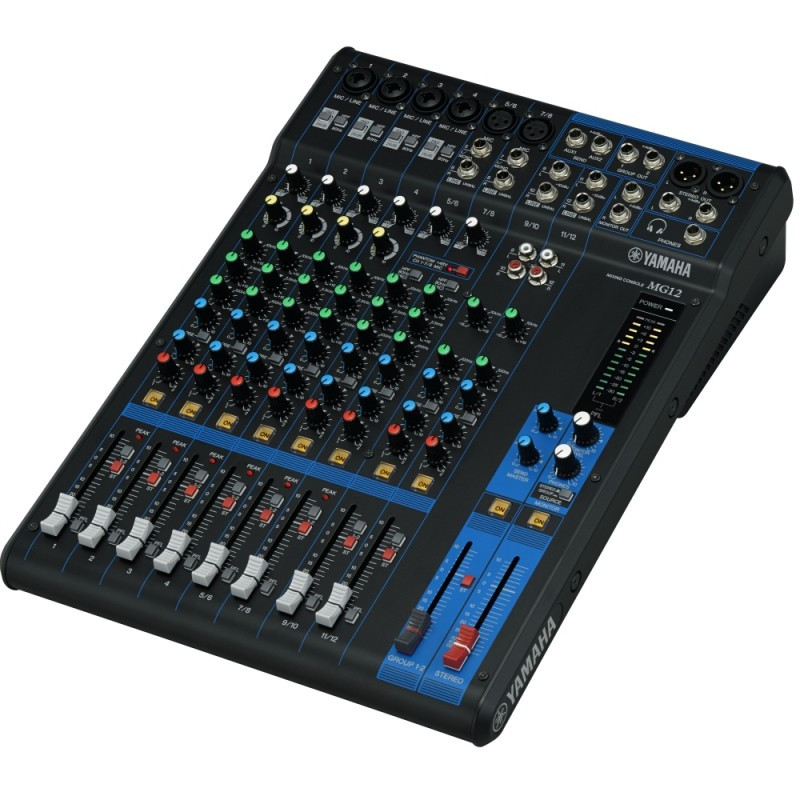

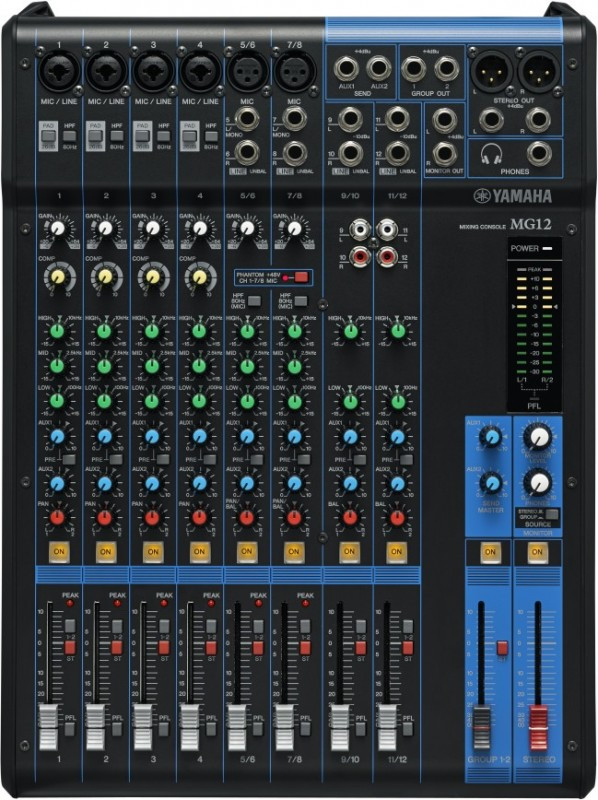

• MG12 mixer 12 kanalen

De derde generatie van de veelgeprezen MG-serie. Deze compacte 12 kanalen mengpaneel leverd hoge kwaliteit geluid voor een breed scala van het mixen. Met dezelfde microfoonvoorversterkers als onze high-end professionele mixers, biedt de MG-serie serieuze geluid met de betrouwbaarheid en de prestaties waar Yamaha bekend om staat.

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
Net Weight: 4.0 kg (8.8 lbs.)
Phantom power: +48 V
Mono[MIC/LINE]: 4
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE]: 2
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 2
GROUP OUT: 2
Bus: Stereo: 1, GROUP: 2, AUX: 2
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk: -78 dB
Power requirements: AC 100 – 240 V, 50 / 60 Hz
Power consumption: 22 W
W: 308 mm (12.1")
H: 118 mm (4.6")
D: 422 mm (16.6")
Net weight: 4.0 kg (8.8 lbs.)
Accessories: Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12
Others: Operating Temperature: 0 to +40°C
