De Zoom LiveTrak L-8 maakt het nu nog eenvoudiger om professioneel klinkende podcasts en muziekuitvoeringen te mixen, monitoren en op te nemen op één draagbaar en betaalbaar apparaat.

Power voor je podcast
Podcastmakers zijn een speciaal ras. Hun audiosetup moet beantwoorden aan een unieke set vereisten en moet de flexibiliteit hebben van een goede mengtafel. De LiveTrak L-8 combineert de befaamde audioprestaties van Zoom met speciale functies voor podcasters.

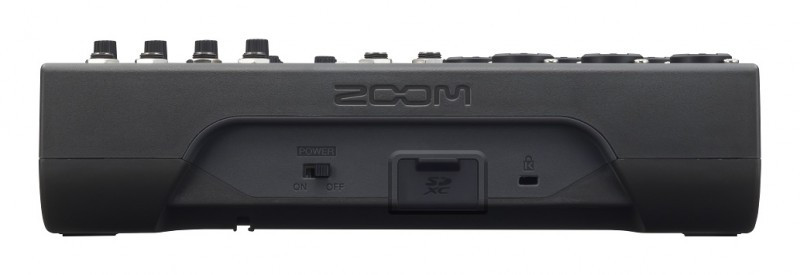

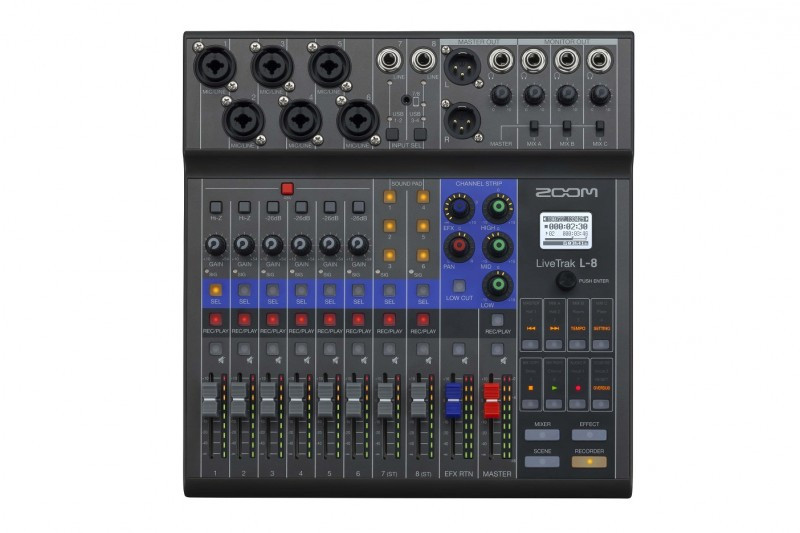

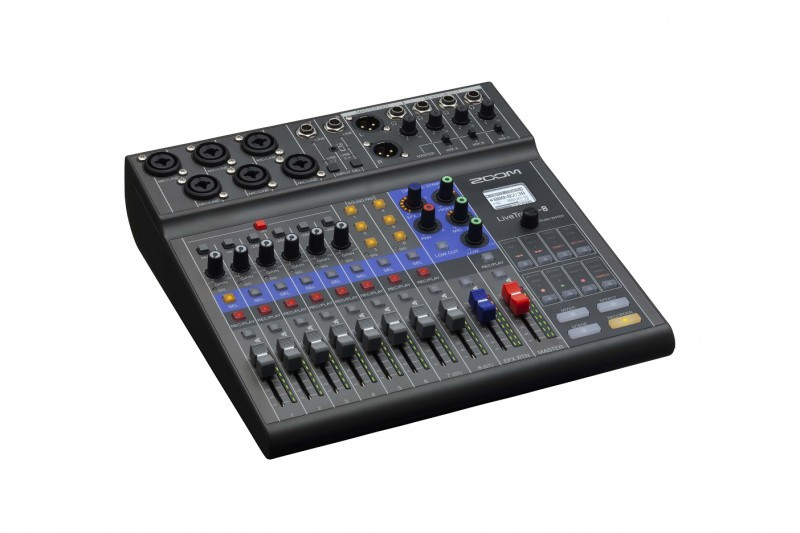

Zoom LiveTrak L-8

Inputs:
MIC/LINE : 6

LINE : 2

Output:
MASTER OUT : 1

MASTER OUT (PHONES) : 1

MONITOR OUT (PHONES) : 3

INPUTS
MIC/LINE:

XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input gain
+10 – +54 dB/–3 – +41 dB (when Hi-Z ON)

Input impedance
XLR: 3 kO
TRS: 3 kO/1 MO (when Hi-Z ON)

Maximum input level
–2 dBu when –26dB switch OFF (at 0 dBFS)
+24 dBu when –26dB switch ON (at 0 dBFS)

Phantom power
+48 V

LINE:

TS phone jack

Input impedance: 10 kO

Maximum input level: +3 dBu

Smartphone connection jack: : TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)

Input impedance: 10 kO

Maximum input level: +3 dBu

OUTPUT
MASTER OUT: XLR jacks (balanced)

Maximum output level: +14.5 dBu

Output impedance: 100 O

MASTER OUT (PHONES): Standard stereo phone jack

Maximum output level
10 mW + 10 mW (60O load)

Output impedance: 10 O

MONITOR OUT (PHONES): Standard stereo phone jack

Maximum output level
10 mW + 10 mW (60O load)

Output impedance
10 O

BUSES
MASTER: 1

MONITOR: 3

SEND EFX: 1

CHANNEL STRIP
LOW CUT:
75 Hz, 12 dB/OCT

EQ:
HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving

Level meter: 9 segments

Send effects: 8 types

RECORDER
Maximum simultaneous recording tracks: 12 at 44.1/48/96 kHz

Maximum simultaneous playback tracks: 10

Recording format:
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Recording media:
4GB–32GB SDHC-compliant cards (Class 10 or higher)
64GB–512GB SDXC-compliant cards (Class 10 or higher)

AUDIO INTERFACE
44.1/48 kHz:
Recording: 12 channels
Playback: 4 channels

Bit depth: 24-bit

Interface: USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows:
OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**

* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:
OS: macOS 10.12 / 10.13 / 10.14 / 10.15
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad:
OS: iOS 10 / 11 / 12 / 13

* Apple Lightning-to-USB Camera Adapter required.

CARD READER
Class: Mass storage USB 2.0 High Speed

Sampling frequency: 44.1/48/96 kHz

Frequency response:
20 Hz – 20 kHz: –1 dB at 44.1 kHz
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)

Equivalent input noise:
–121 dBu or less (IHF-A) at +54dB/150O input

Display:
LCD with backlight (96×64 resolution)

Power:
4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power

Estimated continuous recording time using batteries:
Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62O):

Alkaline batteries: about 2 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 6.5 hours

• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

Power consumption: 5 W

External dimensions: 268 mm (W) × 282 mm (D) × 74 mm (H)

Weight (unit only): 1.56 kg
